Residential ESS Solution
Spring SE Series

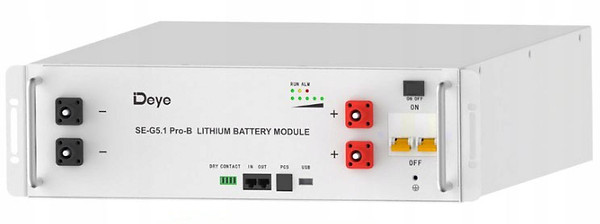

Deye SE G5.1-Pro-B Battery
Safer
Cobalt Free
Lithium Iron Phosphate (LFP) Battery: Safety and
long Lifespan, high efficiency and high p ower density.
Intelligent BMS, providing complete protection.
Reliable
Support
high discharge power. IP20, natural cooling, wide
temperature range: 20 to 55
Flexible
Modular
design, easy to expand, Max. 64 units in parallel,
Max. capacity of 327kWh.
Suited
to residential and commercial applications for increasing
the self consumption ratio.
Convenient
Eco -
Friendly
Three Mounting Methods
Battery module auto networking,
e asy maintenance, support
remotely monitoring and upgrade, s upport USB drive upgrade
the firmware.
Use
environmental protection materials, the whole module
non toxic, pollution free
19inch Standard design, support rack
mounted, wall mounted,
and floor mounted, saving installation space.
Deye SE G5.1-Pro-B Battery Cabinet
Deye Ultra-Thin 1Pcs Case
Deye SE-G5.1-Pro-B-Ultra
Deye Cabinet
Deye SE-G5.1-Pro-B-Cabinet
Deye BC
Deye SE-G5.1-Pro-B-BC
Spring SE Series
-
IP Rating:IP65
-
Bearing Capacity:≤300kg
-
Weight Approximate: 75kg
-
Dimension (W/D/H): 1085 x 140 x 1450
-
Altitude: ≤3000m
-
Recommended Operating Temperature: -20℃ ~ +55℃
-
Reference Standard: UL2416, UL60950-1, EIA-310-E
-
Warranty: 10 Years
-
Color: White (RAL9016)
-
Material: SGCC
-
Applicable Products: SE-G5.1Pro-B, SE-G5.3, SE-G5.1 or other 3U batteries
